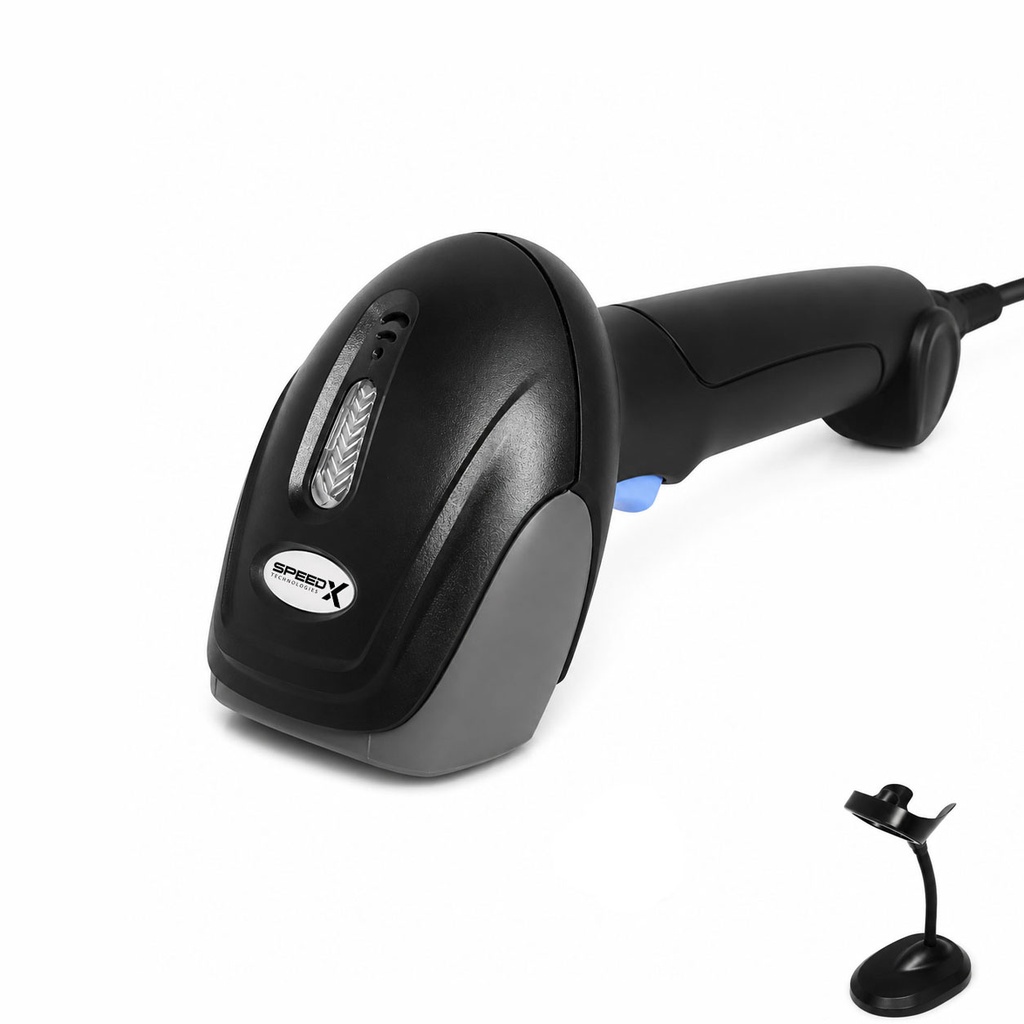

SPEED-X SP-8600 2D WIRE CMOS HANDHELD BARCODE SCANNER WITH STAND

Technical Specifications
Electrical Characteristics
Interface Supported	USB HID KEYBOARD/USB COM
Input Voltage	DC 5V±10%
Current	Max::170mA Dormant current?48mA
Optical Characteristics
Image Sensor	CMOS Array Sensor
Sensor Resolution	640x480 Pixels
Light Source	White LED
Aim Light Source	Red Bar LED
Performance Characteristics
Scanning Angle	Pitch angle:±60°;Skew angle:±40°;Tilt angle:±180°
Field of View	66°(H),50°(V)
Min Resolution	1D?0.127mm/5mil?PCS 0.9? 2D?0.202mm/8mil?PCS 0.9?
Min .PCS value	?20%UPC/EAN 13?5mil?
Language	Multiple Languages
Data Edition	Support for custom data output
Decode Capability	1D : Code128?ISBT 128?AIM 128?GS1 128)?EAN-13?EAN-8?UPCE0? UPCE1?UPC-A?ISBN?ISSN?Code11?Interleaved 2 of 5?Code39? Code93?Code32?Codabar?Matrix 2 of 5?Industrial 25?IATA25? MSI Plessey

	2D: QR Code?Data Matrix?PDF417?Micro QR
Physical Characteristics
Dimensions	90mm62mm160mm(LWH)
Weight	125g(not included cable)
Indicator	Beeper, LED
Environmental Characteristics
Temperature	-20°- 65°C (operation) ? -30°- 70°C (storage)
Humidity	5 - 90% (operation) ?5 - 90% (storage)5
Ambient Light:	Up to 80,000 lx
Shock Drop Test	1.5m drop onto concrete surface
Decoding Depth of Field
Symbology	Resolution	Barcode number	Barcode width	Nearest	Farthest
Code 128	5mil	20	4.3x1.5cm	4cm	8cm
Code 128	15mil	7	4.3x1.5cm	7cm	32cm
Code 39	6.67mil	16	4.4x1.5cm	8.5cm	11cm
Code 39	20mil	4	4.3x1.5cm	7cm	37cm
EAN-13	13..34mil	13	4.2x1.5cm	6cm	22cm
QR code	20mil	120	2x2cm	4.5cm	22cm
Data Matrix	6.67mil	60	0.5x0.5cm	3cm	11cm
Screen QR Code		18	2.1x2.1cm	3cm	41cm
Screen QR Code		18	3.7x3.7cm	10cm	78cm

Rs. 4,730.00 ~~Rs. 5,910.00~~
