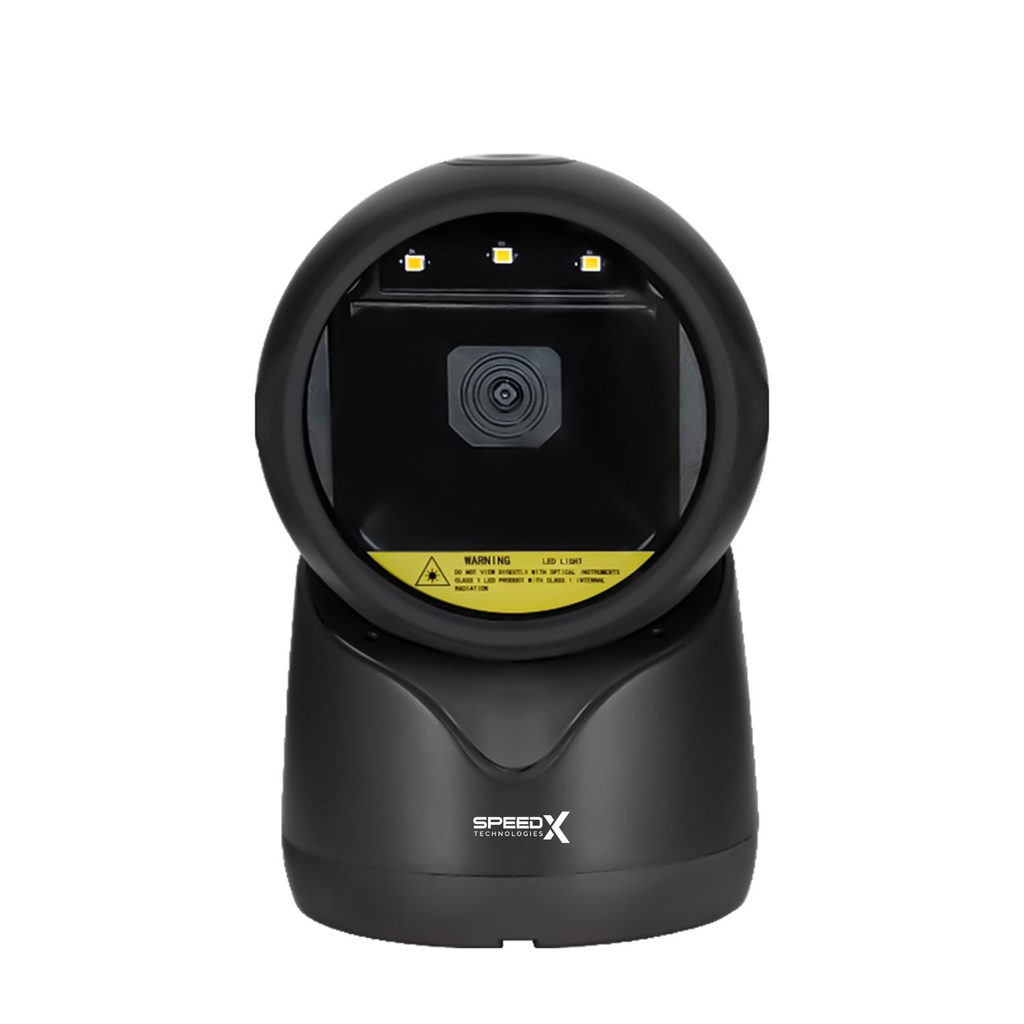

SPEED-X SP-9600 2D DESKTOP BARCODE SCANNER

2D Barcode Image Scanner

Technical Specifications
Electrical Characteristics
Interface Supported	USB HID KEYBOARD/USB VCP
Input Voltage	DC 5V±5%
Current	Max:335mA
Optical Characteristics
Image Sensor	CMOS Array Sensor
Sensor Resolution	640 X 480 Pixels
Light Source	white LED
Decoding speed	60FPS
Performance Characteristics
Scanning Angle	Pitch angle:±65°;Skew angle:±65°;Tilt angle:±360°
Field of View	36H),27V)
Min Resolution	4mil
Min .PCS value	?20% UPC/EAN 13?13mil?
Language	Multiple Languages
Data Edition	Support for custom data output
Decode Capability	1D:Codabar,Code39,Interleaved2of5,NEC2of5,Code93 ,Straight 2 of 5 Industial,Straight 2 of 5 IATA ,Matrix 2 of 5 ,Code 11,Code128,GS1-128,UPC-A,UPC-E0,UPC-E1,EAN/JAN-13,EAN/JAN-8,MSI,GS1-DataBar Omnidirectional,GS1 DataBar Limited,GS1 DataBar Expanded , China Post(Hong Kong 2 of 5),GS1 Composite Codes,Codeblock A,Codeblock F,Code 32,EAN/JAN-8,Korea Post 2D?PDF417,QR Code,Data Matrix,Aztec code,HanXin code,MaxiCodeMaxi code,Micro PDF417
Physical Characteristics
Dimensions	94mm100mm152mm(LWH)
Weight	260g
Indicator	Beeper, LED
Environmental Characteristics
Temperature	-20°?60°C (operation) -30°?70°C (storage)
Humidity	Relative humidity: 5% to 95% (no condensation)
Shock Drop Test	1.5m drop onto concrete surface

Decoding Depth of Field

Rs. 11,410.00 ~~Rs. 14,260.00~~
