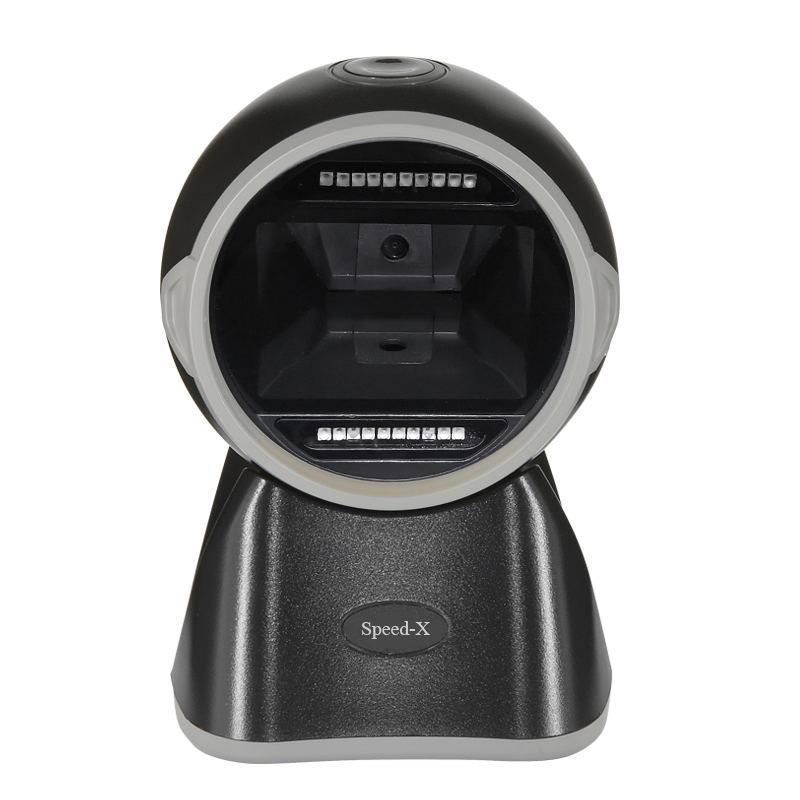

SPEED-X 9400 2D HIGH SPEED DESKTOP BARCODE IMAGE SCANNER
2D Barcode Image Scanner
Technical Specifications
Electrical Characteristics
Interface Supported RS-232/USB HID KEYBOARD/USB VCP
Input Voltage DC 5V±10%
Current Max:200mA
Optical Characteristics
Image Sensor CMOS Array Sensor
Sensor Resolution 1280 X 800 Pixels
Light Source RED LED
Performance Characteristics
Field Of View 58°(H),45°(V)
Min Resolution 1D?0.076mm/3mil?PCS 0.9?
2D?0.152mm/7mil?PCS 0.9?
Min .PCS Value ?30% UPC/EAN 13?13mil?
Language Multiple Languages
Data Edition Support For Custom Data Output
Decode Capability 1D : UPC-A / UPC-E / EAN-8 / EAN-13, ISBN, Code 39, Code 93, Code 128, Code 32, Codabar, MSI Plessey, Interleaved 2 Of 5, Pharmacode ,
2D : PDF417, MicroPDF417, Data Matrix, QR Code, Micro QR Code, DotCode
Physical Characteristics
Dimensions 100mm*95mm*158mm(L*W*H)
Weight 265g
Indicator Beeper, LED
Environmental Characteristics
Temperature 0°?50°C (Operation)
-10°?60°C (Storage)
Humidity 20 - 85% (Operation) ) 20 - 85% (Storage)
Shock Drop Test 1.5m Drop Onto Concrete Surface
